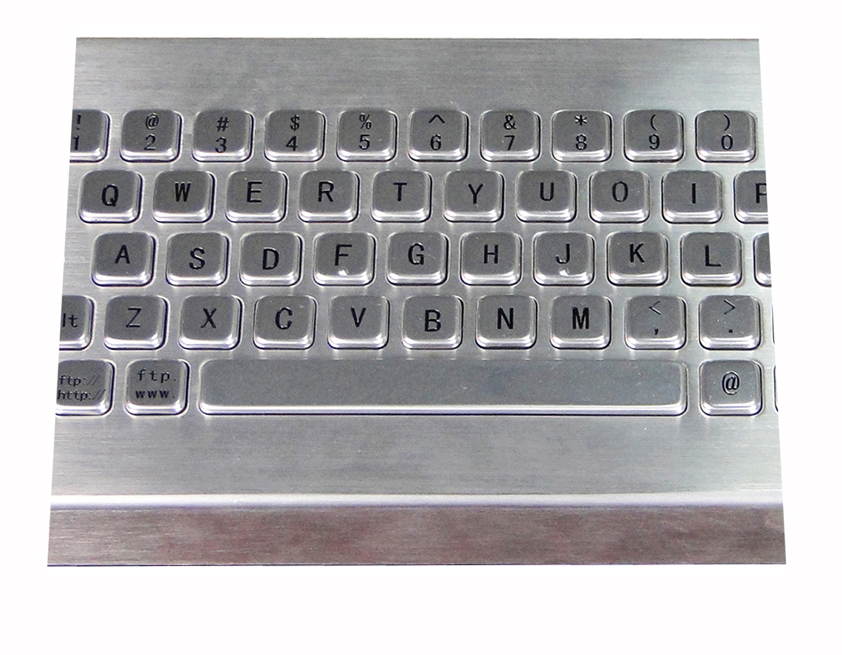

IP65 Waterproof Industrial Desktop Keyboard 65 Full-Travel Keys
Key Features:
1) Waterproof and dust-proof, IP65 up to IP68 requirement
2) 65 full-travel (2.0mm)keys, excellent tactile feedback
3) Etched graphics with permanent ink
4) Designed to operate in harsh environments
5) Built from stainless steel, high vandal-proof.
6) Desktop style, no mounting needed, enjoy the convenience of mobility
7) PS/2 or USB interface for option
8) Customizable layout/characters
MKB-64-DT(Desktop Model)
| Technical Specification |
| Material |
| Front panel & Keys | Brushed stainless steel |
| Back panel | Brushed stainless steel |
| Mouse | None |
| Electrical Data |
| Power supply voltage | DC 5 V ± 5% |
| Current rating | 20 mA |
| Interface | USB or PS2 |
| EMC compliant | Emission: EN 50081-1
Immunity: EN 50082-1 |
| FCC | Part 15, class B |
| Certification | CE,FCC |
| Environmental Characteristics |
| Operating temperature | -20º C to + 60º C |
| Key travel | 2.0mm |
| Lifetime (cycles) | Min 5, 000, 000 actuations |
| Sealing protection | IP65/NEMA4X from the front |
| Vibration resistance | 5 Hz - 200 Hz, IEC 60512-4 |
| Shock resistance | 3 axis 150 m/s² - 11 ms, IEC 60512-4 |
| Compatible Operation System |
| PS2 | Win NT4, 98SE, 98ME, 2000, XP,Win7,Linux,Win8 |
| USB | Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX, Win7,Linux,Win8 |
| Weight and Dimension |
| Weight | 2.20kg |
| Dimension | 355.00 x 180.00 x 36.00 mm (L x W x H) |
Application Of Panel Mount Keyboard
Panel Mount Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.
Self service kiosk, Industrial PC system, Medical & Food industry, Gaming machine & Vending Machine, Navigation & aviation, CNC machine and other factory equipment.
Metal keyboard for ipad air, wireless keyboard for ipad air is applied in ATMs, CDMs, ADMs, self-service vending machines, unattended payment solutions, ticket vending machines, gas station, kiosk solutions, public phone machines.
FAQ:
Q. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q: How will you deliver the products?
A: We can deliver by express, by sea, by air or at you request.
Q: When will I get my products after delivery?
A: It varies from different places. We will recommend the best and fastest type of shipping for you.
Q: How is the inventory of your company?
A: We keep a large stock of goods to ensure our prompt delivery
